Q.

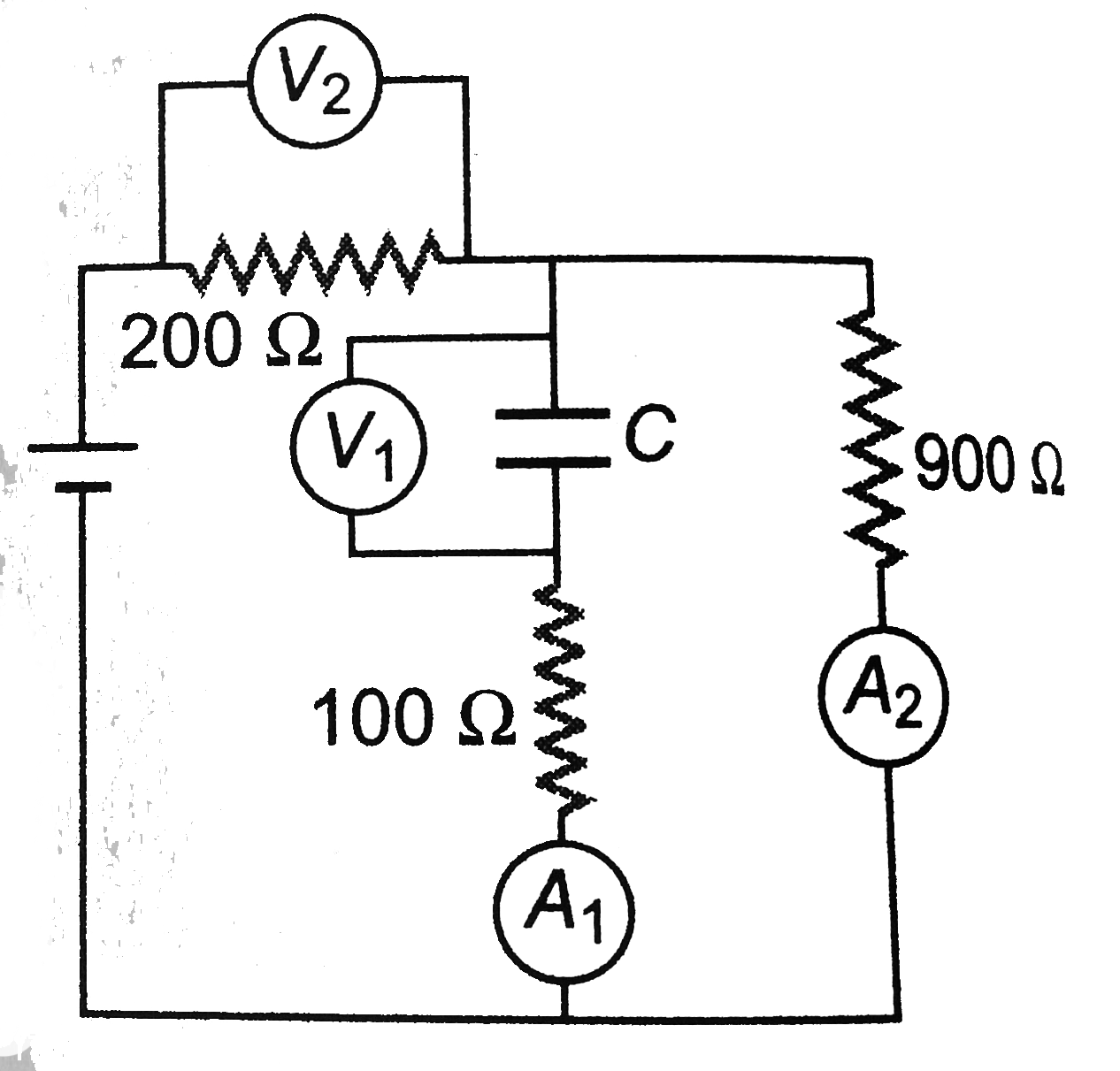

An electric circuit is shown in the given figure. The resistance of each voltmeter is infinite and each ammeter is 100Ω. The charge on the capacitor of 100μF in steady state is 4mC. Choose correct statement(s) regarding the given circuit.

An electrical circuit is shown in the given figure. The resistance of each  voltmeter is infinite and ech ammeter is `100Omega`. The charge on the cpac  - Sarthaks eConnect | Largest Online

see full answer

Your Exam Success, Personally Taken Care Of

1:1 expert mentors customize learning to your strength and weaknesses – so you score higher in school , IIT JEE and NEET entrance exams.
An Intiative by Sri Chaitanya

a

Reading of Voltmeter V2 is 16V.

b

Reading of ammeter A1 is zero and A2 is 0.04A.

c

Reading of Voltmeter V1 is 40V.

d

Emf of the ideal cell is 66V.

answer is B, C.

(Unlock A.I Detailed Solution for FREE)

Best Courses for You

JEE

JEE

NEET

NEET

Foundation JEE

Foundation JEE

Foundation NEET

Foundation NEET

CBSE

CBSE

Detailed Solution

In steady state current through capacitor wire is zero. Current flows through 200Ω,900Ω and A2.

VC=qC=4×10-3100×10-6=40V

This is also potential drop across 900Ω resistance and 100Ω ammeter A2 (Total resistance =1000Ω). Now this 1000Ω and 200Ω are in series. Therefore,

V2=V200Ω=V1000Ω5=405=8 V

Emf =V1000Ω+V200Ω=48 V

i= Emf  Net resistance

  =481200=125 A
