Q.

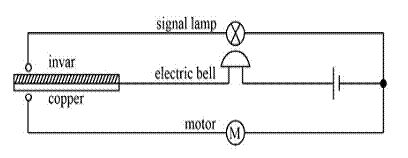

The diagram shows a bimetallic strip used as a thermostat in a circuit. The copper expands more than the invar for the same temperature rise. What will be switched on when the bimetallic strip becomes hot?

Question Image

see full answer

Start JEE / NEET / Foundation preparation at rupees 99/day !!

21% of IItians & 23% of AIIMS delhi doctors are from Sri Chaitanya institute !!
An Intiative by Sri Chaitanya

a

Motor and bell only

b

Bell only

c

Lamp, bell and motor

d

Lamp and bell only

answer is B.

(Unlock A.I Detailed Solution for FREE)

Ready to Test Your Skills?

Check your Performance Today with our Free Mock Test used by Toppers!

Take Free Test

Detailed Solution

detailed_solution_thumbnail

Since copper expands more than invar , therefore side of copper will become convex and side of invar will become concave therefore bimetallic strip will bend upwards and upward circuit will be short and therefore bell and lamp will turn on.
