Q.

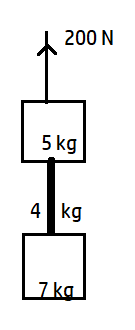

Two blocks shown in figure are connected by a heavy uniform rope of mass 4kg. An upward force of 200N is applied as shown. (Take, $g = 9.8 m / s^{2}$ )
What is the tension at the top of the rope?

see full answer

Start JEE / NEET / Foundation preparation at rupees 99/day !!

21% of IItians & 23% of AIIMS delhi doctors are from Sri Chaitanya institute !!

An Intiative by Sri Chaitanya

a

20 N

b

30 N

c

137.5 N

d

152 N

answer is C.

(Unlock A.I Detailed Solution for FREE)

Ready to Test Your Skills?

Check your Performance Today with our Free Mock Test used by Toppers!

Take Free Test

Detailed Solution

$a = \frac{Net pulling force}{Total mass} = \frac{200 - 16 \times 9.8}{16}$

$= 2.7 m / s^{2}$

Two blocks shown in figure are connected by a heavy uniform rope of mass 4 kg. An upward force of 200 N is applied as shown (a) What is the acceleration of

$200 - 49 - T_{1} = 5 a$

$∴ T_{1} = 200 - 5 \times 2.7 - 49$

$= 137.5 N$
