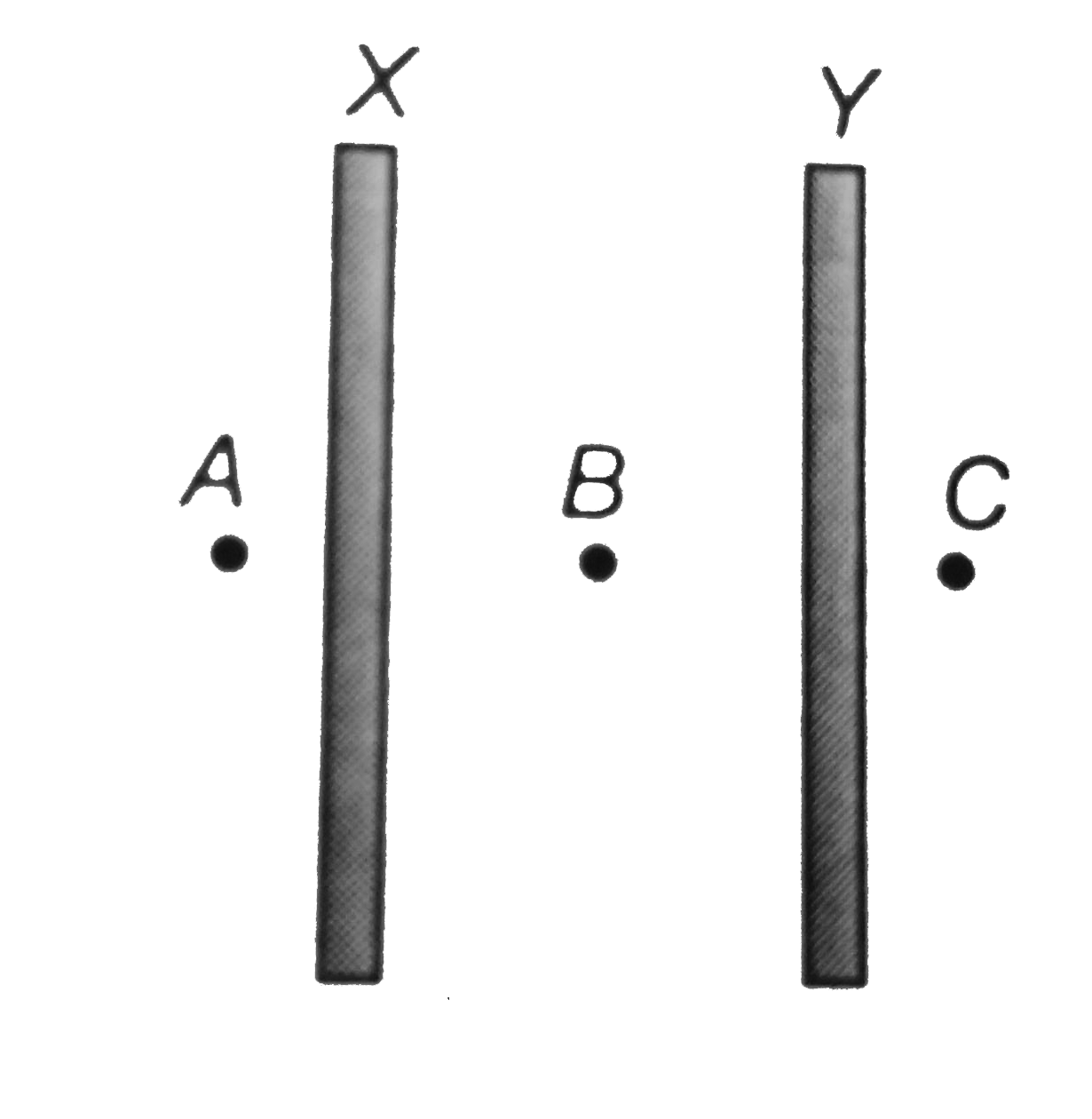

$X and Y$ are large, parallel conducting plates close to each other. Each face has an area $A$ . $X$ is given a charge $Q$ . $Y$ is without any charge. Points $A, B, C$ are as shown in the figure.

see full answer

Your Exam Success, Personally Taken Care Of

1:1 expert mentors customize learning to your strength and weaknesses – so you score higher in school , IIT JEE and NEET entrance exams.

An Intiative by Sri Chaitanya

The field at $B$ is $\frac{Q}{2 ϵ_{0} A}$

The field at $B$ is $\frac{Q}{ϵ_{0} A}$

The fields at $A, B, C$ are of the same magnitude.

The fields at $A and C$ are of the same magnitude but in opposite direction.

answer is A, C, D.

(Unlock A.I Detailed Solution for FREE)

Best Courses for You

JEE

NEET

Foundation JEE

Foundation NEET

CBSE

Detailed Solution

$q_{1} = q_{4} = \frac{q_{total}}{2} = \frac{Q}{2}$

$q_{2} = Q - q_{1} = \frac{Q}{2}$

$q_{3} = - q_{2} = \frac{- Q}{2}$

$E_{A} = E_{1} + E_{4}$ (towards left)

$= \frac{Q}{4 A ε_{0}} + \frac{Q}{4 A ε_{0}} = \frac{Q}{2 A ε_{0}}$

$E_{C} = - E_{A} = \frac{Q}{2 A ε_{0}}$ (towards right)

$E_{B} = E_{2} + E_{3}$ (towards right)

$= \frac{Q}{4 A ε_{0}} + \frac{Q}{4 A ε_{0}} = \frac{Q}{2 A ε_{0}}$
