Introduction to Trigonometry Class 10 notes explain how the angles and sides of a right-angled triangle are connected through six trigonometric ratios. This guide covers the complete NCERT Class 10 chapter: side identification, sin–cos–tan formulas, standard values, complementary angles, identities, worked examples, common mistakes, competency-based questions and a printable revision sheet.
The current CBSE Class 10 curriculum places Introduction to Trigonometry, trigonometric identities, and heights and distances within a 12-mark Trigonometry unit. That is a unit-level allocation: it does not mean Chapter 8 alone will always carry 12 marks.
Introduction to Trigonometry studies fixed ratios between the sides of a right-angled triangle for a chosen acute angle.
By the end of the chapter, you should be able to:
The official CBSE syllabus includes ratios of an acute angle, proof that the ratios are well-defined, standard-angle values, relationships between ratios and simple identities derived from sin²A + cos²A = 1.
The downloadable Introduction to Trigonometry Class 10 Notes PDF should provide the complete lesson, not merely a short description of what the notes contain.
Loading PDF...
Trigonometry is the study of relationships between the angles and sides of triangles. In Class 10, the focus is mainly on right-angled triangles and their acute angles. NCERT introduces trigonometry through situations involving heights and distances before defining the ratios used in this chapter.
The word is formed from Greek roots associated with triangle and measurement.
Chapter 8 focuses on:
The following are applications of trigonometry and are treated separately in the curriculum:

CBSE lists Introduction to Trigonometry, identities, and heights and distances as three separate components within Unit V.
Also Check: Applications of Trigonometry notes

JEE

NEET

Foundation JEE

Foundation NEET

CBSE

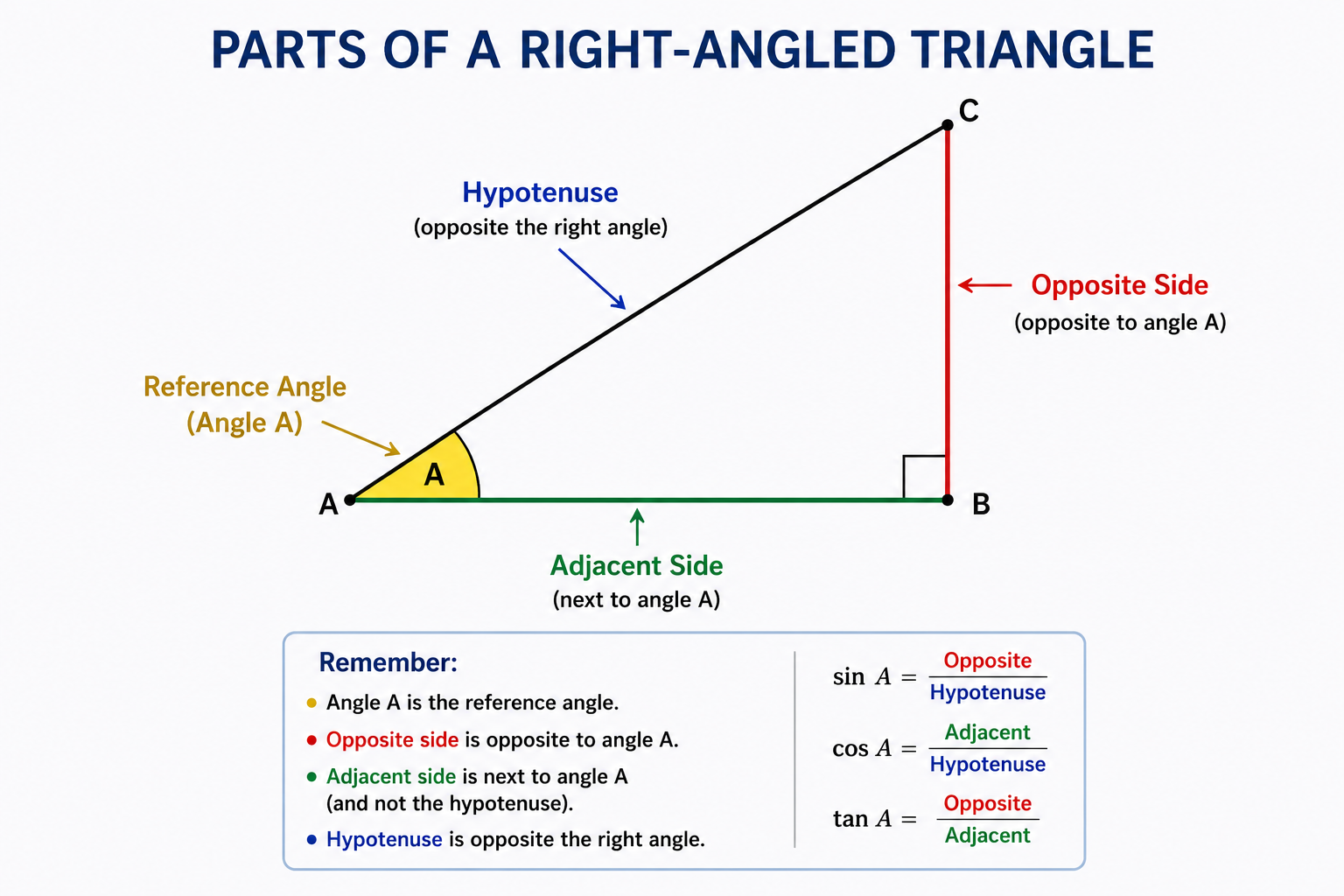

A right-angled triangle has one 90° angle, one hypotenuse and two other sides whose names depend on the selected reference angle.
Right angle — The angle measuring exactly 90°.
A small square is normally drawn at the right angle.
Hypotenuse — The side directly opposite the 90° angle.

The hypotenuse:
Reference angle — The acute angle from which the triangle’s other sides are being described.
Before choosing a trigonometric ratio, mark the reference angle clearly.
Opposite side — The side directly across from the reference angle.
The opposite side does not touch the selected angle.
Adjacent side — The non-hypotenuse side that touches the reference angle.
Do not call the hypotenuse the adjacent side even though it also touches the angle.

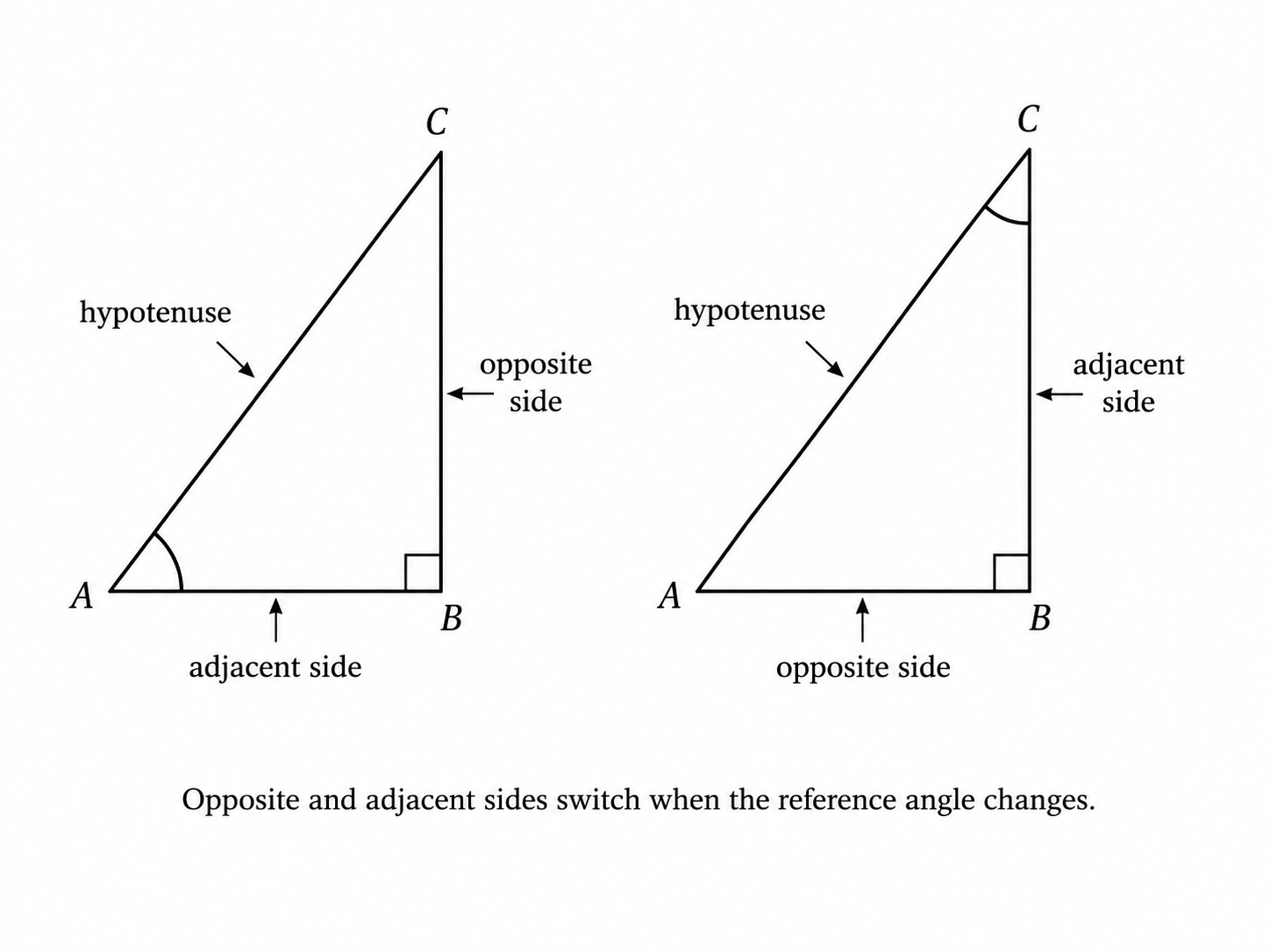

Opposite and adjacent are relative names, so they switch when the reference angle changes.
Suppose triangle ABC is right-angled at B:
NCERT explicitly shows that the side positions change when angle C is considered instead of angle A.
Quick check: The hypotenuse never changes, but the opposite and adjacent sides may change.
The six trigonometric ratios are sine, cosine, tangent, cosecant, secant and cotangent.
Let:
| Ratio | Abbreviation | Side formula | Reciprocal |
| Sine | sin A | Opposite ÷ Hypotenuse, P/H | Cosecant |
| Cosine | cos A | Adjacent ÷ Hypotenuse, B/H | Secant |
| Tangent | tan A | Opposite ÷ Adjacent, P/B | Cotangent |
| Cosecant | cosec A | Hypotenuse ÷ Opposite, H/P | Sine |
| Secant | sec A | Hypotenuse ÷ Adjacent, H/B | Cosine |
| Cotangent | cot A | Adjacent ÷ Opposite, B/P | Tangent |
These definitions match the six ratios given in the official NCERT chapter.
Sine compares the side opposite the angle with the hypotenuse.
sin A = opposite / hypotenuse
Cosine compares the side adjacent to the angle with the hypotenuse.
cos A = adjacent / hypotenuse
Tangent compares the side opposite the angle with the adjacent side.
tan A = opposite / adjacent
Cosecant is the reciprocal of sine.
cosec A = hypotenuse / opposite = 1 / sin A
Secant is the reciprocal of cosine.
sec A = hypotenuse / adjacent = 1 / cos A
Cotangent is the reciprocal of tangent.
cot A = adjacent / opposite = 1 / tan A
For the three main ratios, many students use:
A memory aid is useful for revision, but always identify the reference angle and triangle sides before applying it.
In right triangle ABC, right-angled at B:
Therefore:

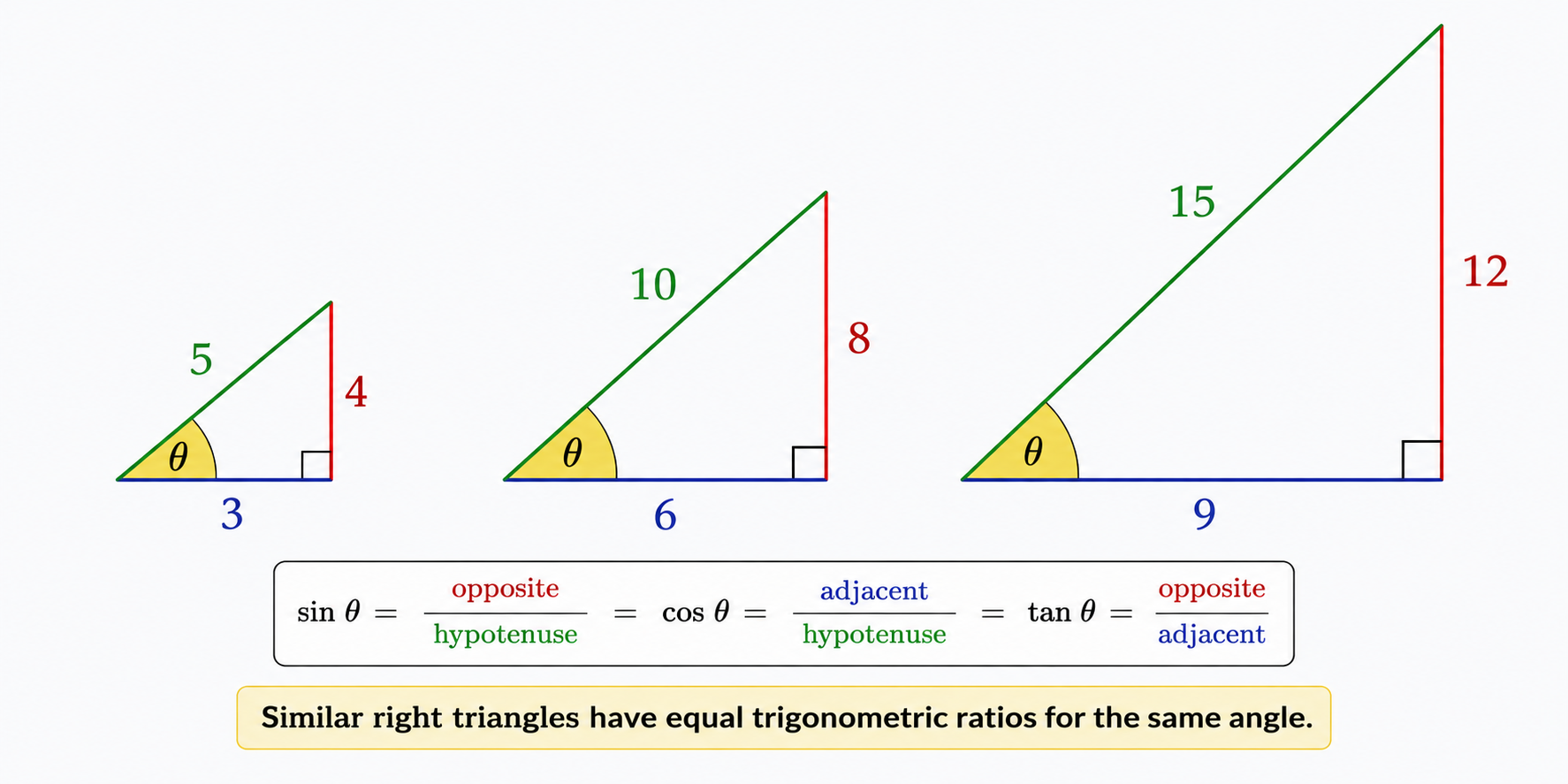

Trigonometric ratios stay constant for a fixed angle because right triangles containing that angle are similar.
Consider three right triangles with proportional side lengths:
| Triangle | Opposite | Adjacent | Hypotenuse | sin A | cos A | tan A |
| 1 | 3 | 4 | 5 | 3/5 | 4/5 | 3/4 |
| 2 | 6 | 8 | 10 | 6/10 = 3/5 | 8/10 = 4/5 | 6/8 = 3/4 |
| 3 | 9 | 12 | 15 | 9/15 = 3/5 | 12/15 = 4/5 | 9/12 = 3/4 |
The side lengths increase, but each ratio remains unchanged.
NCERT proves this using the AA similarity criterion: triangles containing the same acute angle have proportional corresponding sides, so their trigonometric ratios are equal.

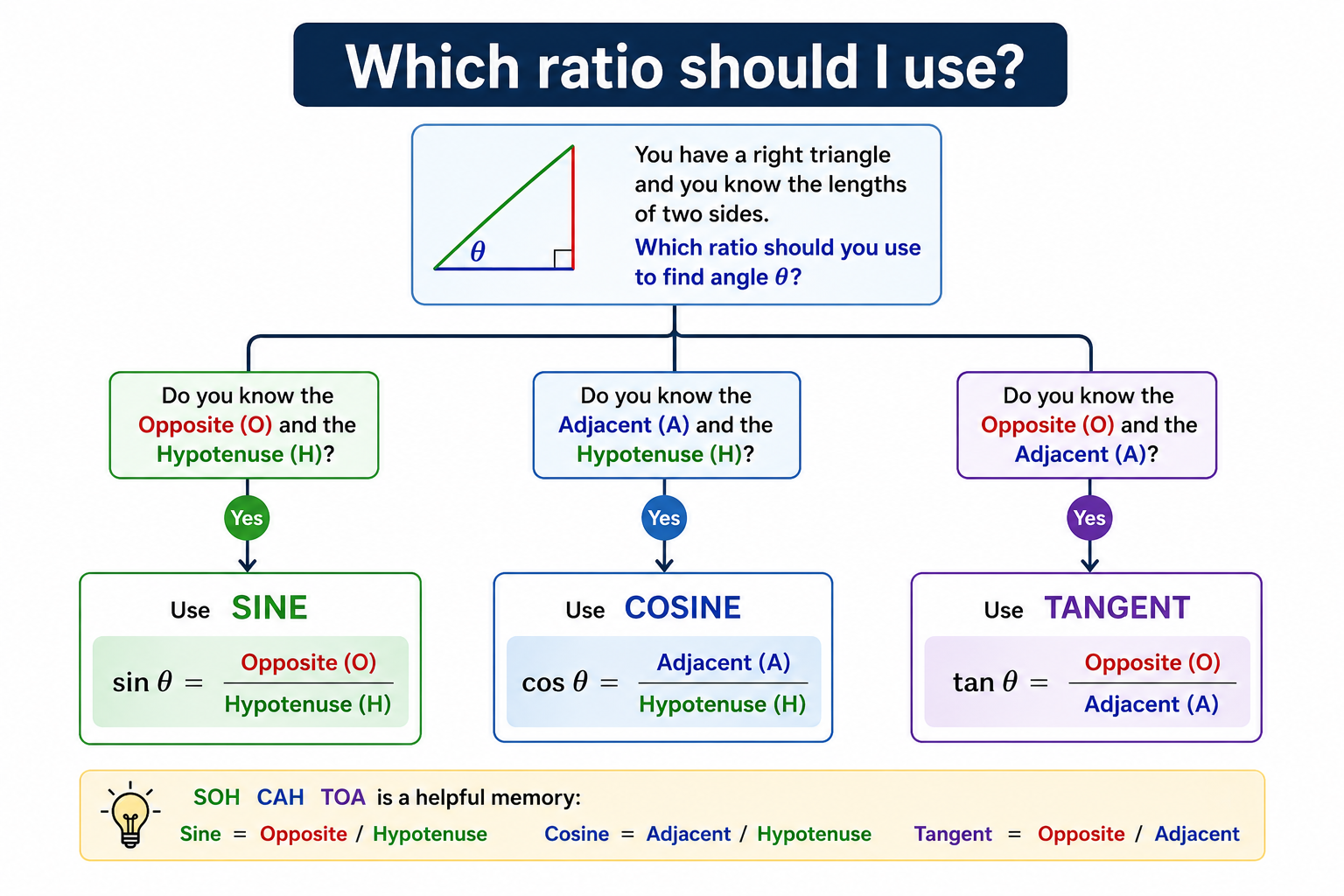

Choose a trigonometric ratio by identifying the reference angle, the known side and the side you need to find.
| Sides involved | Ratio to use |
| Opposite and hypotenuse | Sine |
| Adjacent and hypotenuse | Cosine |
| Opposite and adjacent | Tangent |
A right triangle has:
Use sine:
sin 30° = x/12
Since sin 30° = 1/2:
1/2 = x/12
x = 6 cm
A right triangle has:
Use cosine:
cos A = 5√3/10 = √3/2
Therefore, A = 30°.
A right triangle has:
Use tangent:
tan A = 8/8 = 1
Therefore, A = 45°.
Reciprocal ratios are useful when the question directly gives or asks for cosec, sec or cot, but most side-finding questions can first be approached with sin, cos or tan.
For example:
sec A = hypotenuse / adjacent
If sec A = 5/4, then:
cos A = 4/5
The six ratios are connected by reciprocal and quotient relationships.
| Relationship | Equivalent form |
| sin A × cosec A = 1 | cosec A = 1/sin A |
| cos A × sec A = 1 | sec A = 1/cos A |
| tan A × cot A = 1 | cot A = 1/tan A |
tan A = sin A / cos A
cot A = cos A / sin A
These relationships follow directly from the side definitions. For example:
sin A / cos A
= (opposite/hypotenuse) ÷ (adjacent/hypotenuse)
= opposite/adjacent
= tan A
cosec A is the reciprocal of sin A, but sin⁻¹x represents inverse sine and is not the same expression.
NCERT specifically warns that (sin A)⁻¹ as a reciprocal can represent cosecant, while sin⁻¹A has a different meaning studied in higher classes.
sin²A means (sin A)², not sin(A²).
Similarly:
The standard trigonometric table gives exact values of all six ratios at 0°, 30°, 45°, 60° and 90°.
| Angle | 0° | 30° | 45° | 60° | 90° |
| sin A | 0 | 1/2 | 1/√2 | √3/2 | 1 |
| cos A | 1 | √3/2 | 1/√2 | 1/2 | 0 |
| tan A | 0 | 1/√3 | 1 | √3 | Not defined |
| cosec A | Not defined | 2 | √2 | 2/√3 | 1 |
| sec A | 1 | 2/√3 | √2 | 2 | Not defined |
| cot A | Not defined | √3 | 1 | 1/√3 | 0 |
The official NCERT table also notes that as the angle increases from 0° to 90°, sine increases from 0 to 1, while cosine decreases from 1 to 0.
[IMAGE PLACEHOLDER: Colour-coded standard trigonometric values table optimized for mobile and print. Undefined cells should use a clear symbol and not display zero. Alt text: “Trigonometric values of 0, 30, 45, 60 and 90 degrees.”]
The 45° values come from an isosceles right triangle with equal perpendicular sides.
Let both shorter sides equal 1.
By the Pythagoras theorem:
hypotenuse² = 1² + 1² = 2
hypotenuse = √2
Therefore:
The 30° and 60° values come from dividing an equilateral triangle into two congruent right triangles.
Start with an equilateral triangle of side 2.
Dividing it vertically creates:
For the 30° angle:
For the 60° angle:
NCERT uses the same equal-sided and equilateral-triangle constructions to derive these values.
Use the sequence:
sin 0° = √0/2
sin 30° = √1/2
sin 45° = √2/2
sin 60° = √3/2
sin 90° = √4/2
The cosine sequence is the sine sequence in reverse:
cos 0° = √4/2
cos 30° = √3/2
cos 45° = √2/2
cos 60° = √1/2
cos 90° = √0/2
Then calculate:
tan A = sin A / cos A
tan 90° is not defined because tan A = sin A/cos A and cos 90° = 0.
Therefore:
tan 90° = 1/0
Division by zero is not defined.
cosec 0° = 1/sin 0° = 1/0
cot 0° = cos 0°/sin 0° = 1/0
Both expressions involve division by zero, so both are undefined.
sec 90° = 1/cos 90° = 1/0
Therefore, sec 90° is undefined.
NCERT motivates the endpoint values by showing how the triangle changes as an acute angle approaches 0° or 90°.

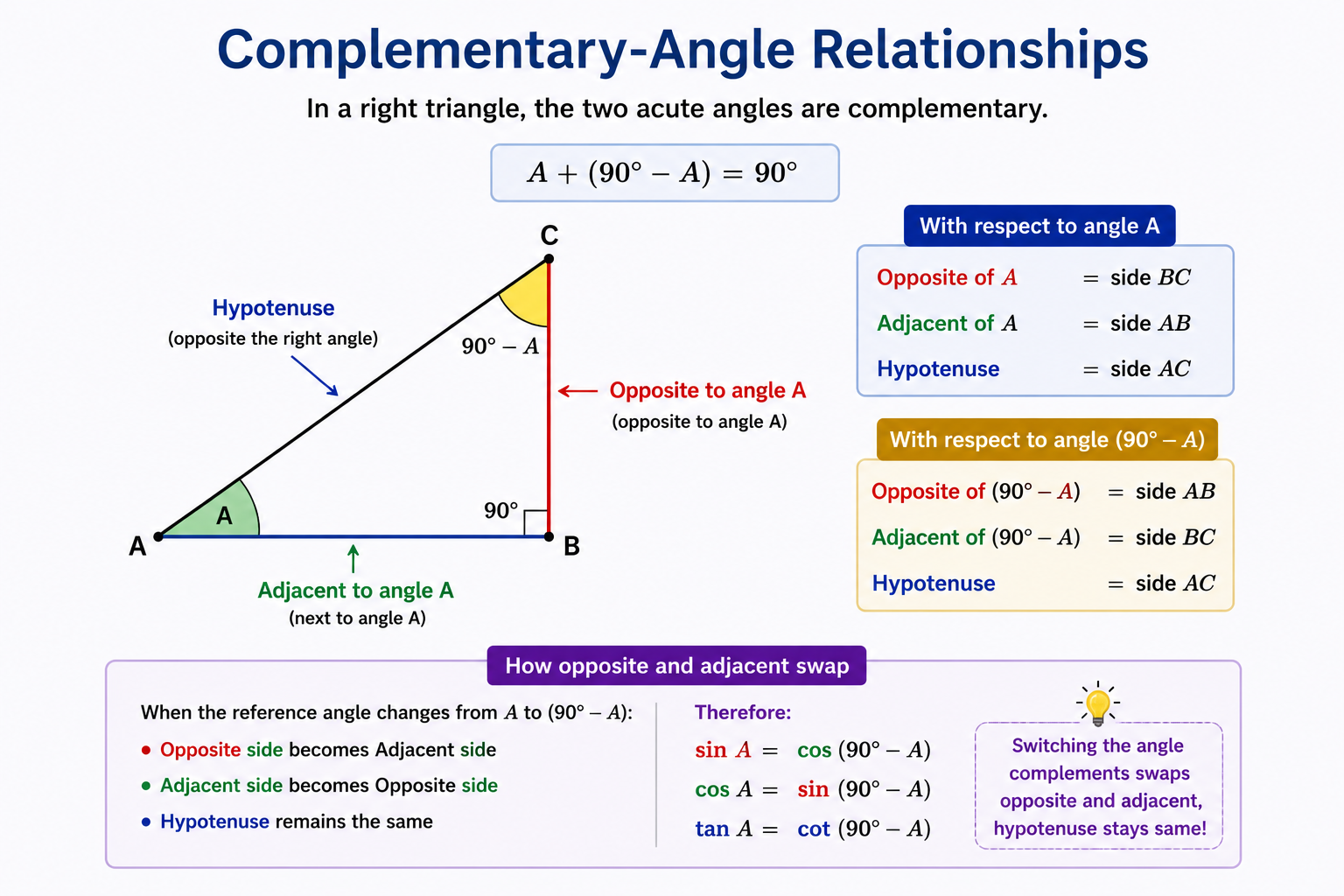

Two acute angles in a right triangle are complementary, so the sine of one equals the cosine of the other.
If:
A + B = 90°
then:
| Ratio | Complementary-angle relationship |
| Sine and cosine | sin A = cos(90° − A) |
| Cosine and sine | cos A = sin(90° − A) |
| Tangent and cotangent | tan A = cot(90° − A) |
| Cotangent and tangent | cot A = tan(90° − A) |
| Secant and cosecant | sec A = cosec(90° − A) |
| Cosecant and secant | cosec A = sec(90° − A) |
The opposite side for one acute angle is the adjacent side for the other acute angle.
In the same right triangle:
Therefore:
sin A = opposite to A / hypotenuse
cos B = adjacent to B / hypotenuse
Because those numerator sides are the same:
sin A = cos B
Since B = 90° − A:
sin A = cos(90° − A)
Find:
`sin 35° − cos .”]
Find:
sin 55°
Because:
cos 55° = cos(90° − 35°) = sin 35°
Therefore:
sin 35° − cos 55° = 0
If:
tan A = cot 40°
then:
tan A = tan(90° − 40°)
tan A = tan 50°
For acute angles:
A = 50°
A trigonometric identity is an equality involving trigonometric ratios that is true for every permitted value of the angle.
| Identity | Equation |
| True for every permitted angle | True only for selected angle values |
| Example: sin²A + cos²A = 1 | Example: sin A = 1/2 |
| Usually proved by algebraic simplification | Usually solved to find the angle |
CBSE specifies the proof and application of sin²A + cos²A = 1 and lmple identities. citeturn796718view2

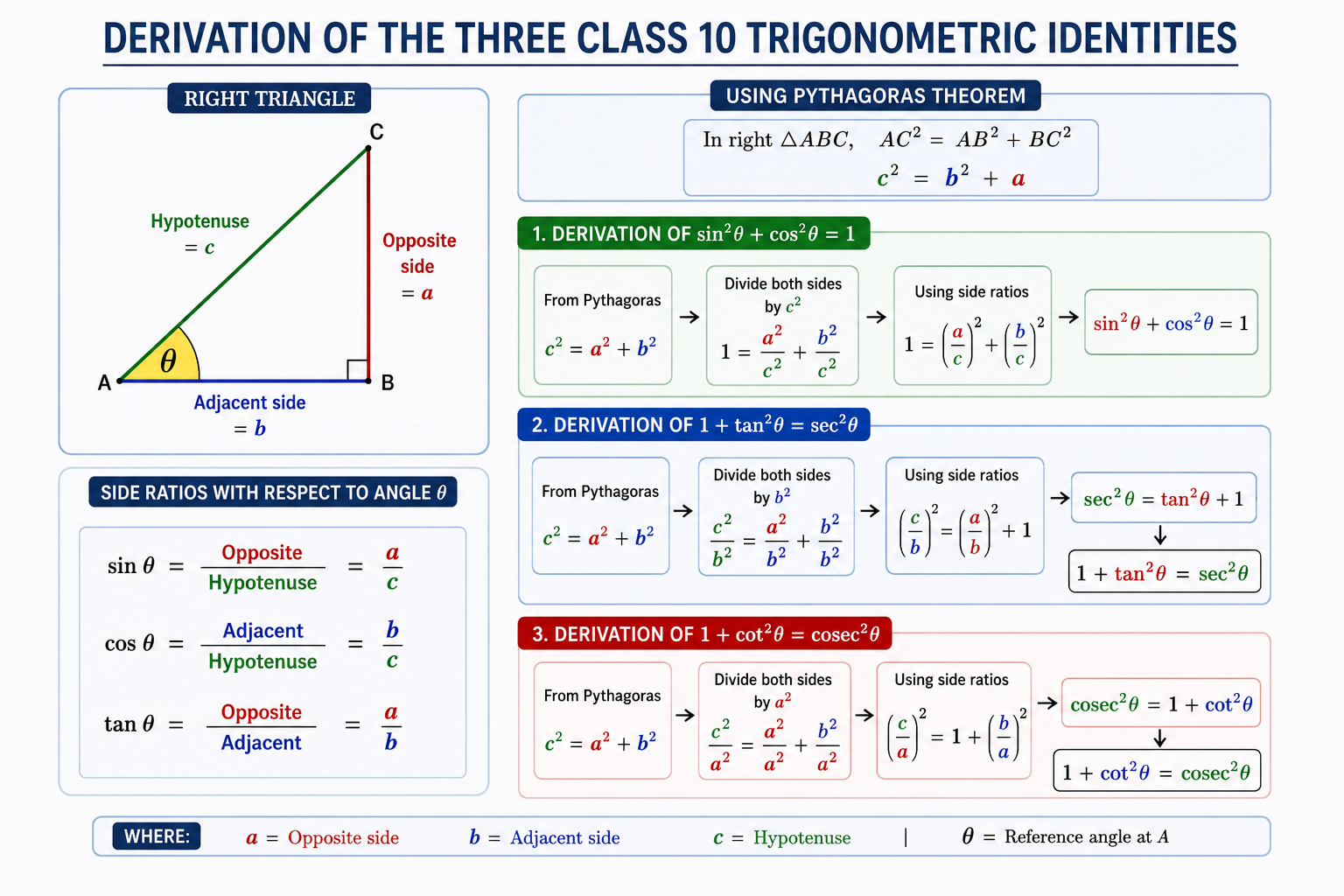

In right triangle ABC, suppose:
By the Pythagoras theorem:
AB² + BC² = AC²
Divide every term by AC²:
AB²/AC² + BC²/AC² = AC²/AC²
(AB/AC)² + (BC/AC)² = 1
cos²A + sin²A = 1
Therefore:
sin²A + cos²A = 1
Start with:
AB² + BC² = AC²
Divide by AB²:
1 + BC²/AB² = AC²/AB²
1 + tan²A = sec²A
Start with:
AB² + BC² = AC²
Divide by BC²:
AB²/BC² + 1 = AC²/BC²
cot²A + 1 = cosec²A
NCERT derives all three identities fr citeturn647573view5turn647573view6
From sin²A + cos²A = 1:
From 1 + tan²A = sec²A:
From 1 + cot²A = cosec²A:

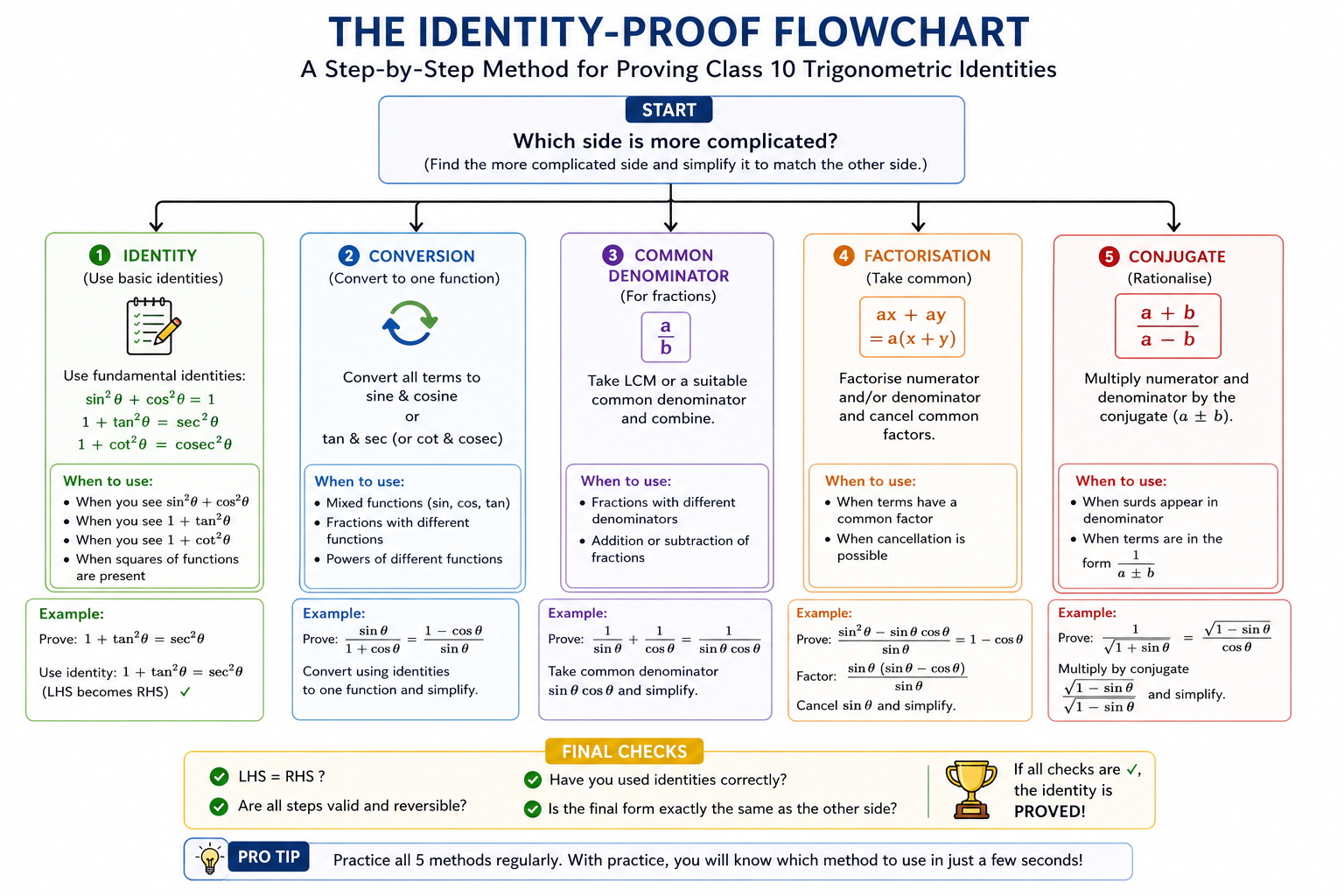

To prove a trigonometric identity, simplify the more complicated side using known identities and valid algebra until it becomes the other side.
Convert to sine and cosine when:
Use:
Prove:
(1 − sin²A)/cos²A = 1
LHS
= (1 − sin²A)/cos²A
Using 1 − sin²A = cos²A:
= cos²A/cos²A
= 1
= RHS
Prove:
(sec A − cos A)/tan A = sin A
LHS
= (1/cos A − cos A) ÷ (sin A/cos A)
= [(1 − cos²A)/cos A] × [cos A/sin A]
Using 1 − cos²A = sin²A:
= [sin²A/cos A] × [cos A/sin A]
= sin A
= RHS
Prove:
1/(1 + sin A) + 1/(1 − sin A) = 2sec²A
LHS
= [(1 − sin A) + (1 + sin A)] / [(1 + sin A)(1 − sin A)]
= 2/(1 − sin²A)
Using 1 − sin²A = cos²A:
= 2/cos²A
= 2sec²A
= RHS
Prove:
(1 − cos²A)/sin²A = 1
LHS
= (1 − cos²A)/sin²A
Using 1 − cos²A = sin²A:
= sin²A/sin²A
= 1
= RHS
Prove:
(1 − sin A)/cos A = cos A/(1 + sin A)
LHS
Multiply numerator and denominator by the conjugate 1 + sin A:
= [(1 − sin A)(1 + sin A)] / [cos A(1 + sin A)]
= (1 − sin²A) / [cos A(1 + sin A)]
Using 1 − sin²A = cos²A:
= cos²A / [cos A(1 + sin A)]
= cos A/(1 + sin A)
= RHS
Use the following board-style structure:
NCERT’s worked identity examples also simplify from the left-hand side through a citeturn647573view6turn647573view7
Most trigonometry errors come from incorrect side labels, confused notation, division by zero or invalid algebraic cancellation.
| Common mistake | Why it is wrong | Correct approach |
| Treating opposite and adjacent as fixed names | Their names depend on the reference angle | Mark the angle before labelling sides |
| Calling the hypotenuse “adjacent” | The hypotenuse has its own fixed role | Adjacent means the touching non-hypotenuse side |
| Writing sin²A = sin(A²) | The square applies to the ratio’s value | sin²A = (sin A)² |
| Writing sin⁻¹A = cosec A | Inverse sine and reciprocal sine are different | cosec A = 1/sin A |
| Writing tan 90° = 0 | It requires division by cos 90° = 0 | tan 90° is undefined |
| Assuming every ratio is below 1 | Tangent, cotangent, secant and cosecant can exceed 1 | Check the ratio’s side definition |
| Cancelling terms across addition | Cancellation works only with common factors | Factor the numerator or denominator first |
| Expanding immediately | Expansion may hide a useful identity | Check for identities and factors first |
| Changing both sides without a plan | It makes the logical proof unclear | Simplify the more complicated side |
| Claiming the Trigonometry unit equals Chapter 8 marks | The unit also includes identities and heights and distances | Describe 12 marks as unit-level weightage |
Incorrect:
(sin A + cos A)/sin A = cos A
You cannot cancel sin A from only one term in the numerator.
Correct:
(sin A + cos A)/sin A
= sin A/sin A + cos A/sin A
= 1 + cot A
Yes.
For example:
tan 60° = √3
Since √3 ≈ 1.732, tangent can be greater than 1.
NCERT includes a true-or-false exercise specifically testing the misconceptions less than 1. citeturn796718view0
Worked examples show how to move from triangle information to ratios, standard values and identities.
Level: Both Basic and Standard
In a right triangle, relative to angle A:
Find the hypotenuse and all six ratios.
By the Pythagoras theorem:
hypotenuse² = 5² + 12²
= 25 + 144
= 169
hypotenuse = 13 cm
Therefore:
Level: Both Basic and Standard
Given:
tan A = 3/4
Take:
By the Pythagoras theorem:
hypotenuse = 5k
Therefore:
Level: Both Basic and Standard
Evaluate:
2sin 30° cos 60° + tan 45°
Substitute:
= 2(1/2)(1/2) + 1
= 1/2 + 1
= 3/2
Level: Both Basic and Standard
Evaluate:
sin 25°/cos 65°
Since:
cos 65° = cos(90° − 25°) = sin 25°
Therefore:
sin 25°/cos 65° = 1
Level: Standard focus
Triangle 1 has sides 3, 4, 5. Triangle 2 has sides 12, 16, 20. Both contain the same acute angle opposite the shortest side.
Compare the sine of that angle.
Triangle 1:
sin A = 3/5
Triangle 2:
sin A = 12/20 = 3/5
The values are equal because the triangles are similar.
Level: Standard focus
A student writes:
sec²A − tan²A = sec²A − (sec²A + 1) = −1
Identify the error.
The identity is:
1 + tan²A = sec²A
Therefore:
tan²A = sec²A − 1
Correct calculation:
sec²A − tan²A
= sec²A − (sec²A − 1)
= 1
The NCERT exercises progress from side ratios to standard-angle values and then to identity proofs.
| Skill | Notes section to study | Practice focus |
| Identify triangle sides | Parts of a Right-Angled Triangle | Relabel the same triangle from both acute angles |
| Calculate six ratios | The Six Trigonometric Ratios | Use given side lengths |
| Find ratios from one ratio | Relationships Between Ratios | Construct a proportional triangle |
| Evaluate standard values | Standard Trigonometric Values | Substitute exact table values |
| Use complementary angles | Complementary Angles | Rewrite angles as 90° − A |
| Prove identities | How to Prove Identities | Simplify one side step by step |
| Diagnose statements | Common Mistakes | True-or-false with justification |
Also Check: NCERT Class 10 Chapter 8 solutions
NCERT is the essential starting point, but students should also practise competency-based and timed questions after mastering the textbook exercises.
A useful order is:
CBSE publishes curriculum-aligned competency-focused question resources designed to assess application
Both papers use the same core trigonometry concepts, but Mathematics Standard places more weight on application and higher-order reasoning.
| Question-paper category | Mathematics Basic | Mathematics Standard |
| Remembering and understanding | 75% | 54% |
| Applying | 15% | 24% |
| Analysing, evaluating and creating | 10% | 22% |
These percentages describe the design of the complete Mathematics papers citeturn796718view3turn796718view4
Focus on:
Add:
Important trigonometry questions should cover definitions, standard values, ratio selection, identities, misconceptions and reasoning.
A. Adjacent
B. Perpendicular
C. Hypotenuse
D. Base
Answer: C. The hypotenuse is opposite the 90° angle.
A. 3/5
B. 5/3
C. 4/5
D. 5/4
Answer: B. Cosecant is the reciprocal of sine.
A. 0
B. 1/√3
C. 1
D. √3
Answer: C.
A. Sine
B. Cosecant
C. Tangent
D. Cotangent
Answer: C. tan 90° = sin 90°/cos 90° = 1/0.
A. sin B
B. cos B
C. tan B
D. sec B
Answer: B.
A. sin²A − cos²A = 1
B. 1 − tan²A = sec²A
C. 1 + tan²A = sec²A
D. 1 + sec²A = tan²A
Answer: C.
A. 0°
B. 30°
C. 45°
D. 60°
Answer: C, because tan A = 1.
A. Always equal
B. Both reciprocals
C. Different mathematical expressions
D. Equal only at 45°
Answer: C.
sin 60° cos 30° + cos 60° sin 30°
= (√3/2)(√3/2) + (1/2)(1/2)
= 3/4 + 1/4
= 1
(1 − cos A)(1 + cos A)
= 1 − cos²A
= sin²A
tan A = cot 25°
tan A = tan(90° − 25°)
tan A = tan 65°
Therefore, A = 65°.
This 20-mark test checks direct knowledge, application, identity proofs and competency-based reasoning.
Suggested time: 35 minutes
Calculator: Not required
Suitable for: Mathematics Standard; Questions 1–7 also suit Mathematics Basic
(1 − sin²A)/cos²A = 1
cos A = adjacent/hypotenuse
sin 30° = 1/2
cot A
No. cosec 0° = 1/sin 0° = 1/0, which is undefined.
1
Hypotenuse:
√(9² + 12²) = √225 = 15
Therefore:
sin A = 9/15 = 3/5
cos A = 12/15 = 4/5
2cos²45° + tan 30°cot 30°
= 2(1/√2)² + (1/√3)(√3)
= 2(1/2) + 1
= 2
Given:
sin A = 8/17
Take:
Adjacent:
= √(17² − 8²)
= √(289 − 64)
= √225
= 15
Therefore:
cos A = 15/17
tan A = 8/15
LHS = (1 − sin²A)/cos²A
= cos²A/cos²A
= 1
= RHS
Tangent compares the opposite and adjacent sides, so it can exceed 1 when the opposite side is longer.
For example:
tan 60° = √3 > 1
A Class 10 trigonometry formula sheet should contain the six ratios, reciprocal relationships, One-Page Class 10 Trigonometry Formula Sheet
A Class standard values, complementary-angle rules and three identities.
Effective trigonometry revision combines formula recall with side identification, worked problems and identity-proof practice.
| Day | Focus |
| 1 | Triangle parts and six ratios |
| 2 | Ratios from given sides |
| 3 | Standard values |
| 4 | Complementary angles |
| 5 | Identities and derivations |
| 6 | Proofs and error analysis |
| 7 | Timed mixed test |
There is no fixed number that guarantees a score. A student is ready when they can:
Also Check:
No courses found
Trigonometry in Class 10 studies the relationships between the sides and acute angles of right-angled triangles. The chapter introduces six ratios, standard values and simple identities.
The six ratios are sine, cosine, tangent, cosecant, secant and cotangent. They compare different pairs of sides in a right-angled triangle.
Identify the known and unknown sides relative to the reference angle. Use sine for opposite–hypotenuse, cosine for adjacent–hypotenuse and tangent for opposite–adjacent.
Use the sequence √0/2, √1/2, √2/2, √3/2, √4/2 for sine and reverse it for cosine. Calculate tangent by dividing sine by cosine.
They are sin²A + cos²A = 1, 1 + tan²A = sec²A and 1 + cot²A = cosec²A.
Begin with the more complicated side, use a known identity, and convert other ratios into sine and cosine when useful. Simplify one side through valid algebra until it becomes the other side.
tan 90° = sin 90°/cos 90° = 1/0. Division by zero is not defined.
No. cosec A = 1/sin A, while sin⁻¹ represents inverse sine in higher mathematics.
A ratio compares two triangle sides, such as sin A = opposite/hypotenuse. An identity is an equality involving ratios that is true for every permitted angle, such as sin²A + cos²A = 1.
NCERT is essential and should be completed fully. Competency-based, error-analysis and timed questions provide useful additional preparation after the textbook exercises are mastered.
They are part of the wider CBSE Trigonometry unit but are listed separately from Introduction to Trigonometry and identities. Study them after mastering the basic ratios and standard values.
The core concepts are shared. Mathematics Standard gives greater overall weight to application and higher-order reasonise more multi-step identities and competency questions.
The current CBSE course structure assigns 12 marks to the complete Trigonometry unit. This includes introductory trigonometrs rather than guaranteeing 12 marks for Chapter 8 alone.
Download Trigonometry Class 10 notes pdf from Infinity Learn website's this page to obtain the complete notes and a separate one-page formula sheet without a multi-step sign-up process.
